Hugecool (Qingdao) Refrigeration Techonolgy Co., Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | HUGECOOL |
| Model Number : | Cold Storage |
| Certification : | ISO |
| Supply Ability : | 300 Meter/Meters per Week chiller room for dates |
| Price : | $15.00 - $66.00 / Meters |
PU foam chiller room for dates with bizter multiple compressor
Description
Advantages
1) good fire prevention performance and not melting when burning
2) wide temperature application range, small contractility even in
low temp environment and non fragile.
3) nontoxic and inodorous, in accord with the state environmental
protection requirements
cold room cold storage panels thickness usually made according to
the room temp, and the sized can be customized.
 |
>>>>CONTACT US |
Specification
Sizes of Panel | Length(m) | less than 30m |
Width(mm) | 960mm | |
Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm | |
Heat Conductivity(W/mk) | 0.022 | |
Compressive Strength(N/cm2) | more than 196 | |
Tensile Strength (N/cm2) | more than 24.5 | |
Bending Strength (N/cm2) | more than 24.5 | |
Water Absorption(g/100cm2) | 3 | |
Flame Resistance | Self-extinguishing within 3 seconds after taking away flame | |
Material of covering steel | Color painted steel | |
Product show
Features and advantages
1.Convex structure: Panels are joined together by means of tongue
and groove and locked together by cam- lock on each side of the
panel to ensure air tight joints. There’s no need of rivets, thus
reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the
future.
3.Perfect heat insulation: High density thermo insulated PUR foam
up to 38kg/m³or above for perfect cold-room heat insulation
efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel
sheet/ Embossed aluminum sheet,The standard metal sheets are all
smooth. Standard color of steel sheet is white-gray, others are
natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room
panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the
joint parts of each sandwich panel to ensure perfect sealing to
avoid the cooling air leakage from the cool room or moisture inside
the PU insulated panel for the best refrigeration and frozen
storage result.
7.Load bearing: The compressive strength is150kpa above, people can
walk on the floor panels and allow trolleys can go in and out.

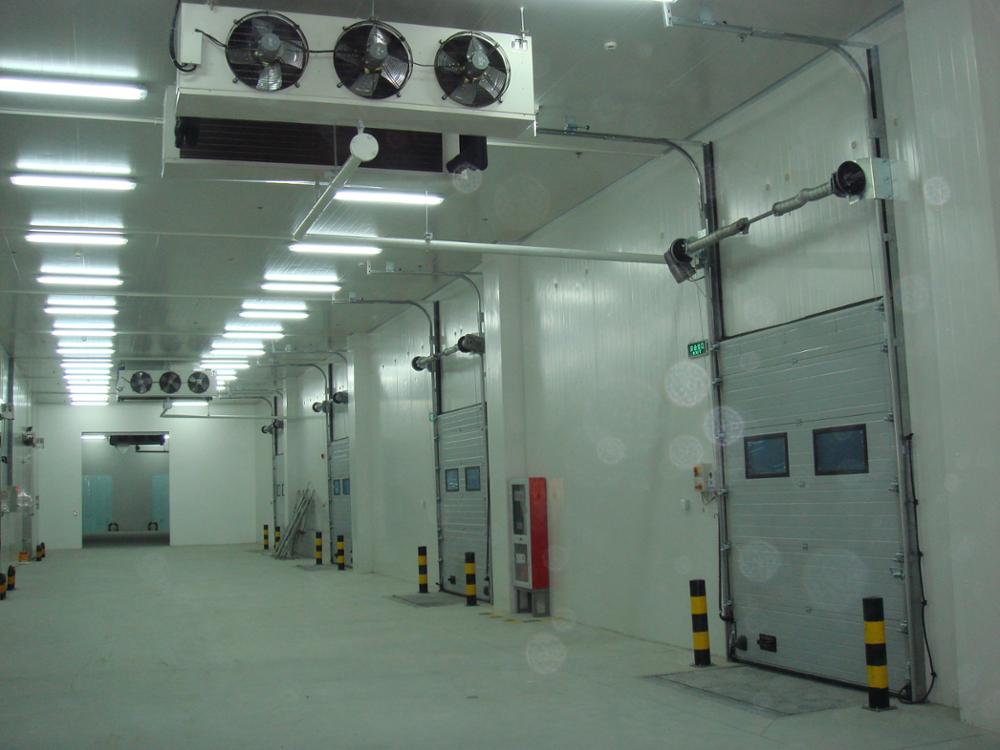

Successful cases
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance against copy of BOL).
|
|
