| Brand Name : | Reliance |
| Model Number : | PU-100150 |
| Supply Ability : | 30000 Square Meter/Square Meters per Week cold room wall panel |
| Price : | $25.00 - $38.00 / Square Meters |
Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 295.3mm. The maximum lengths of panels are 6M. Non-standard sizes are also available upon request with price varying.
Functions: Fresh-keep, freezing, quick-freezing, fire-proof,
explosion-proof, air-conditioning are all available
Choice of the surface finished
A. Stucco Embossed Aluminium
B. Stainless Steel
C. Painted Galvanized Mild Steel
D. PVC Stell
E. Standard floor panels: 1.0mm galvanized mild steel
Panel thickness and Operating Temperature;
Cold storage temperature: -5C to +10C, panel thickness: 50mm, 75mm,
100mm;
Freezer storage temperature: -25 to +18C, panel thickness: 150mm,
180mm, 200mm;
Quick frozing temperature: -40C to +18C, panel thickness: 150mm,
180mm, 200mm.

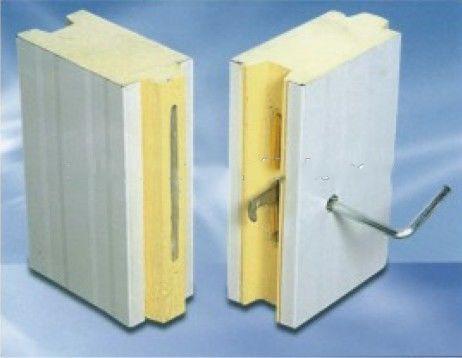

Installation of panels:
Every panels consists of tongue and groove construction and can be
tightened by a number of exocentric fasteners, which may be
unscrewed easily with a hexagonal key.
|
|
