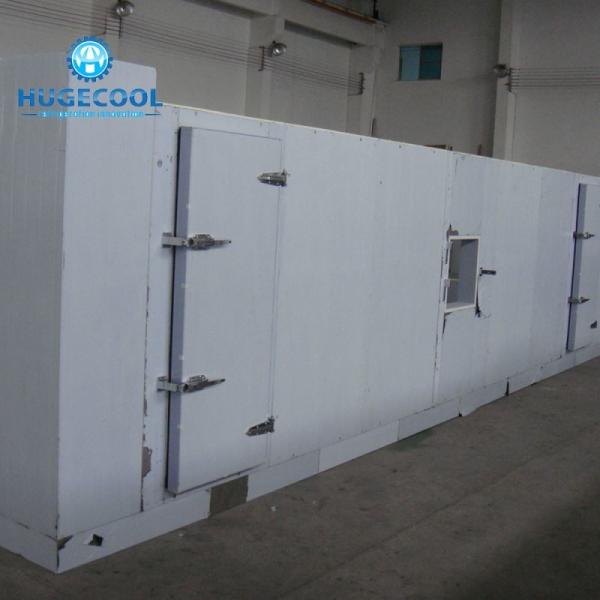

Deep freezer solar cold room jacket
Basic Structure
Panels are joined together by means of tongue and groove and locked
together by camlock on each side of the panel to ensure air tight
joints.
Cam-lock design fastener to install cold room tightly and strongly
Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from
the cool room or moisture inside the PU insulated panel for the
best refrigeration and frozen storage result
1. Modular insulation panel, CAM hook, Installation is simple, easy to install
2. Refrigeration: R22, R404A, Glycol Secondary Refrigerant
3. Temperature Range: From - 35°C To + 30°C
4. Room Size: According to the customer request design
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,
6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting, Water defrosting
10.High efficiency and energy saving design
| Sizes of Panel | Length(m) | less than 30m |
| Width(mm) | 960mm | |
| Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm | |
| Heat Conductivity(W/mk) | 0.022 | |
| Compressive Strength(N/cm2) | more than 196 | |
| Tensile Strength (N/cm2) | more than 24.5 | |
| Bending Strength (N/cm2) | more than 24.5 | |
| Water Absorption(g/100cm2) | 3 | |
Flame Resistance (only for panels added flame retardant agent) | Self-extinguishing within 3 seconds after taking away flame | |
| Material of covering steel | Color painted steel | |
| Stainless steel | ||
| Galvanized steel | ||
|
|
