Unit Cooler Evaporator For Cold Storage Room
The description of air evaporator
Advantages:
D series air coolers include DL, DD, DJ types and are applied in all ranges of cold room due to compact structure, lightweight, space saving. Compared to the normal flow unit cooler, it can rapidly fast cool down temperature and greatly improve products freshness.
1. Compact structure and light weight
2. Low energy consuming and high working efficiency
3. Less maintenance &Low cost
4. Rapid temperature falling and long preservation time.
According to the applicable temperature, DL type is suitable for cold storage with temperature at 0℃,such as the preservation for fresh eggs, vegetables fruits and teas. DD type is adapted for cold storage at temperature around -18℃, as the refrigeration for frozen meat and fish. DJ type is applied to cold room at -25℃ or under -25℃ for freezing fresh meat and fish.
| Model | Ref. capacity (kw) | Cooling area (m²) | Space of fins | Fan | Water Defrost | |||||||
| Qty | Dia.(mm) | Air volume(m3) | Pessure(pa) | Power (nxW) | Voltage (V) | Water volume | Water inlet (inch) | Water outlet (inch) | ||||
| DD-12.0/60 | 12.0 | 60 | 6 | 2 | 500 | 2x6000 | 147 | 2x550 | 380 | 1.5 | G1 1/2 | G2 1/2 |
| DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2x6000 | 167 | 2x550 | 2.0 | ||||
| DD-20.0/100 | 20.0 | 100 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.4 | ||||
| DD-24.0/120 | 24.0 | 120 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.8 | ||||
| DD-28.0/140 | 28.0 | 140 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.2 | ||||
| DD-32.1/160 | 32.1 | 160 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.7 | ||||
| DD-37.4/200 | 37.4 | 200 | 2 | 600 | 2x10000 | 200 | 2x1500 | 4.4 | G2 | G3 | ||
| DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3x10000 | 200 | 3x1500 | 5.8 | ||||
| DD-56.2/310 | 56.2 | 310 | 3 | 600 | 3x10000 | 200 | 3x1500 | 6.1 | ||||

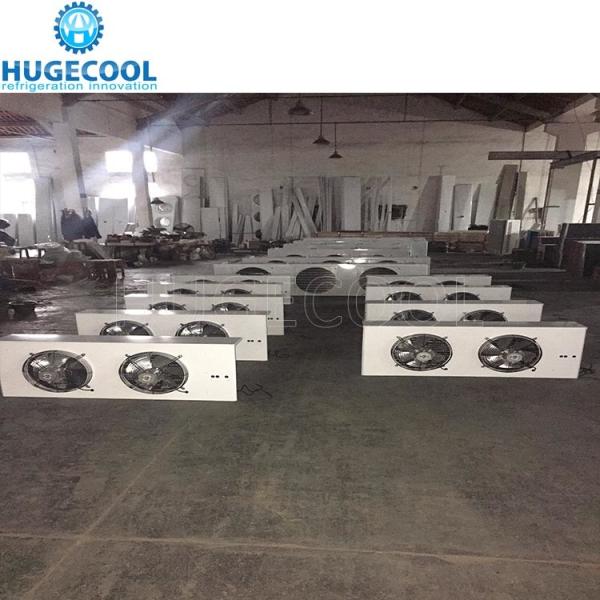

Pictures of air evarator
Feature
1. Made of steel plate, the surface coating, corrosion resistance.
2. With beatuiful appearance
3. With excellent heat exchange effect
4. Water frosting to ensure quick defrosting.
Application
1.D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.
2.Dl serial can apply to 0°C cold room, storage such as egg or vegetable.
3.DD apply to -18°C cold room, storage meat, fish.
4.DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance before delivery).
|
|
