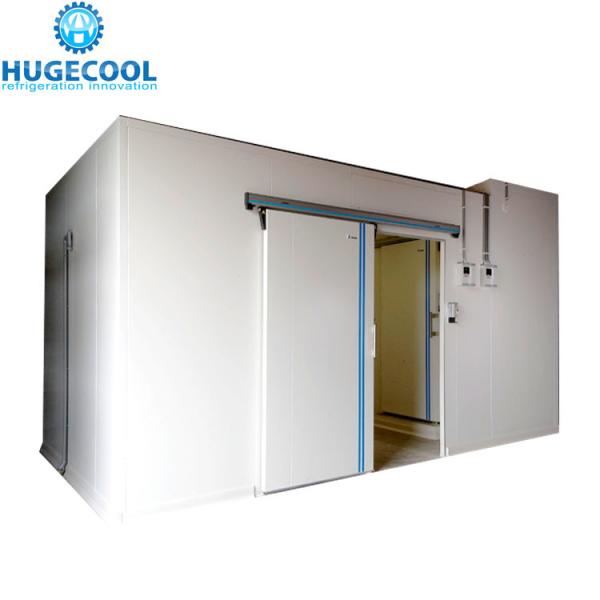

Prefabricated Fruit And Vegetable Cold Room Price
Fruit and vegetable cold room is to keep fruit and vegetable fresh. The cold room temperature usually ranges from -5 to +5°C .
What brand compressor do you prefer for cold room?
 |  |  |
| Copeland side discharge condensing unit | piston open type condensing unit | U type condenser condensing unit |
 |  |  |
| Copeland scroll open type condensing unit | V type condenser condensing unit | Monoblock condensing unit |
Do you know how to recognize compressor genuine or false?
Parameter:
| Compressor brand | Copeland, , etc |
| Compressor type | scroll ,piston , screw etc |
| Fan type | Axial fan:High degree of protection, large Air flow, low noise |
| Unit kinds | Open type, box type |
| Cooled type | Air cooled, water cooled |
| Refrigeration type | R404a |
| Copper tube connector | fitting reducer |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ etc |
| Warranty | 1 Year |
| Quality Assurance | 2.6Mpa leak-proof stress test |
| Transport | Plywood box package by sea shipment, keep it safe. |
Description
 |
CONTACT US |
Specification
Sizes of Panel | Length(m) | less than 30m |
Width(mm) | 960mm | |
Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm | |
Heat Conductivity(W/mk) | 0.022 | |
Compressive Strength(N/cm2) | more than 196 | |
Tensile Strength (N/cm2) | more than 24.5 | |
Bending Strength (N/cm2) | more than 24.5 | |
Water Absorption(g/100cm2) | 3 | |
Flame Resistance (only for panels added flame retardant agent) | Self-extinguishing within 3 seconds after taking away flame | |
Material of covering steel | Color painted steel Stainless steel Galvanized steel | |
Cold Room Pu Panel Details:
1. Our Pu Panel Standard width is 960mm , the length can be customized according to your requirements .
2. PU panel is B2 fire proof grade, safe situation.
3. cam lock connection pu panel , very easy to install, anti-corrosion effect is very good.
4. 40-42 kg/m3 density PU foam, the insulation effect is good . In other words , can save your electricity cost .
5. CFC-free raw material , environmental friendly.
After placing order ,our designer will design an exact drawing for your cold room , you can install it easily .
Cold room temperature | Thickness of pu panel |
5~15 degree | 75mm |
-15~5 degree | 100mm |
-15~-20 degree | 120mm |
-20~-30degree | 150mm |
Lower than -30degree | 200mm |
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
Unit Cooler Evaporator Details:
1. Hydrophilic aluminum foil , very good anti-corrosion effect
2. Using silver electrode for copper pipe welding , high leak resistance for freon.
3. 2.6Mpa pressure leak test to keep it safe
Fin space | DL: 4.5mm, DD: 6.0mm, DJ: 9.0mm DCJ 12.0mm |
Fin material | Hydrophilic aluminum foil(blue fin) |
Fan | Axial fan |
Defrosting way | Electric defrosting |
Package | Plywood box with pallet |
For fruits and vegetable cold room , normally use DL or DD series .
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%, balance arrange by T/T before shipment).
