Hugecool (Qingdao) Refrigeration Techonolgy Co., Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | HUGECOOL |
| Model Number : | Cold Room For Fish |
| Certification : | ISO9001 |
| Supply Ability : | 300 Meter/Meters per Week Cold Room For Fish |
| Price : | $3,500.00 - $10,000.00 / Sets |

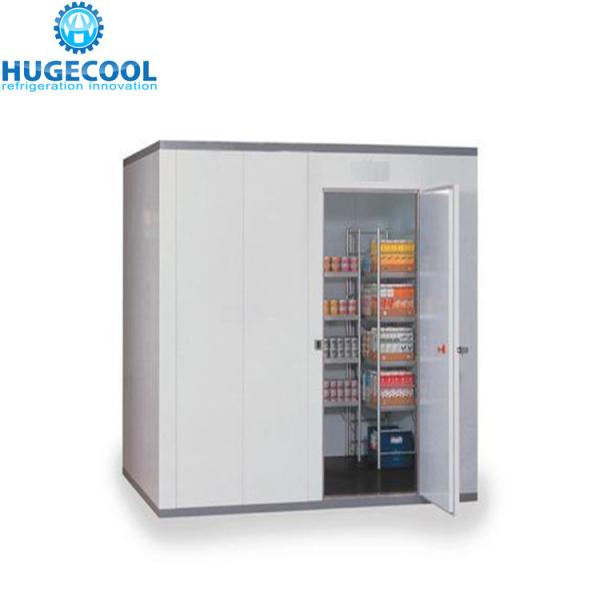

Cold Room For Fish Storage
Description
Cold room are widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory, fruit and vegetable warehouse, egg storage, hotel, supermarket, hospital, blood bank, troops and laboratory.
Features of Cold room (freezer room,cold room,cold storage room,cold storage cold room cooling system, flower storage cold room.)
1. PU Sandwich Panel
2. Single door
3. /Copeland condensing units
4. Evaporator
5. Copper pipes, PVC water pipe. lamp, control cabinet
6. for fruit , vegetable, beer, beverage, dairy, fish, meat etc.
 |
CONTACT US |
Specification
Sizes of Panel | Length(m) | less than 30m |
Width(mm) | 960mm | |
Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm | |
Heat Conductivity(W/mk) | 0.022 | |
Compressive Strength(N/cm2) | more than 196 | |
Tensile Strength (N/cm2) | more than 24.5 | |
Bending Strength (N/cm2) | more than 24.5 | |
Water Absorption(g/100cm2) | 3 | |
Flame Resistance (only for panels added flame retardant agent) | Self-extinguishing within 3 seconds after taking away flame | |
Material of covering steel | Color painted steel Stainless steel Galvanized steel | |
Product show
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
We suggest to use DD or DJ series evaporator for fish cold room.
| Series | Fin Space | Suitable Tempeature |
| DL | 4.5mm | -5~5C |
| DD | 6mm | -10~-20C |
| DJ | 9mm | -20~-30C |
Original New compressor condensing unit , do you know how to recognize compressor real or false? Contact us , let us discuss more.
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance against copy of BOL).
|
|
