Customized Ice Cold Room Suitable For Supermarket Walk In Cooler

Ice Cold Room, Walk In Cooler

Introduction of freezer room:

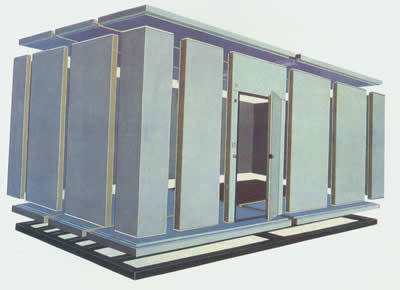

Freezer room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and the thickness of the material according to the requirements of panel products.
Freezer Room Features:
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.

Different Types of Cold Room Parameters
cooler room	-5~5 ºC	For fruits , vegetables , milk , cheese etc	75mm,100mm panel thickness
freezer room	-18~-25 ºC	For frozen meat , fish , seafood , ice cream etc	120mm,150mm panel thickness
blast room	-30~-40 ºC	For fresh fish , meat ,fast freezer	150mm,180mm,200mm panel thickness

Dimension	Length(m)Width(m)Height(m)
Refrigeration unit	Copeland/Bizter etc.
Refrigeration type	Air cooled/water cooled/evaporation cooled
Refrigerant	R22,R404a,R447a,R448a,R449a,R507a Refrigerant
Defrost Type	Electric defrosting
Voltage	220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional
Panel	New material polyurethane insulation panel,43kg/m3
Panel thickness	50mm,75mm,100mm,150mm,200mm
Type of door	Hinged door,sliding door,double swing electric sliding door,truck door
Temp. of room	-60ºC~+20ºC optional
Functions	Fruit,vegetable,flower,fish,meat,chicken,medicine,chemical,electronics,etc.
Fittings	All necessary fittings are included,optional
Place to assemble	Indoor/out door(concrete construction building/steel construction building)

Ice Cold Room, Walk in Cooler
